• Manual transfer case & hubs
• 4-wheel drive
• 72 amp/hr (650 CCA) battery
• 157-amp HD alternator
• Trailer tow pkg -inc: 7-wire harness w/relays, 7/4-pin combination connector
• 15K trailer hitch receiver -inc: 2.5" hitch & 2" sleeve reducer
• Integrated trailer brake controller *Compatible w/select electric over hydraulic brakes* *w/66D Pickup Box Delete, 7 & 4 way combo trailer tow socket & bracket deleted*
• 8' pickup box -inc: (4) tie-down hooks, partitionable & stackable storage
• (2) front tow hooks
• Mono-beam front axle w/coil spring suspension
• Full-floating rear axle
• HD gas shock absorbers
• Front stabilizer bar
• Pwr steering w/steering damper
• 4-ton hydraulic jack

• (7) LT245/75R17E all-season BSW tires
• (6) 17" argent painted steel wheels
• Full-size spare tire w/lock & carrier
• Chrome front bumper w/grained top cover
• Chrome rear bumper
• Front fender vents
• Box-rail & tailgate top-edge moldings
• 6" angular molded black step bars
• Grille w/medium platinum insert & chrome surround
• Dual beam jewel-effect headlamps
• Pickup box/cargo lights
• Roof clearance lights
• Underhood service light
• Manually telescoping pwr heated trailer tow mirrors -inc: turn signals, integrated clearance lights, heated convex spotter mirror
• Solar tinted glass
• Rear privacy glass
• Flip-out rear quarter windows
• Variable intermittent windshield wipers
• Dual rear access doors
• Front/rear license plate brackets
• Black door handles
• Removable locking tailgate w/black handle & TailGate Assist

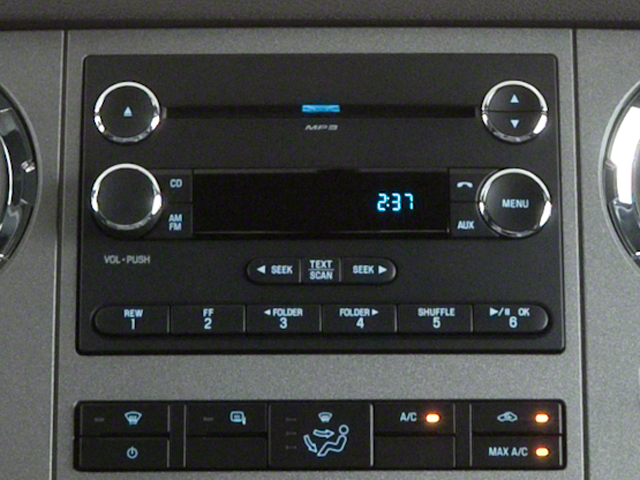

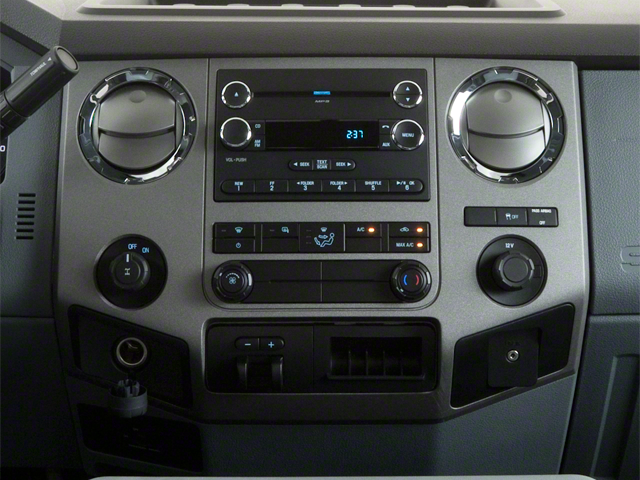

• AM/FM stereo w/CD/MP3 player -inc: clock, (4) speakers, aux audio input jack

• Air conditioning w/chrome ringed black vents

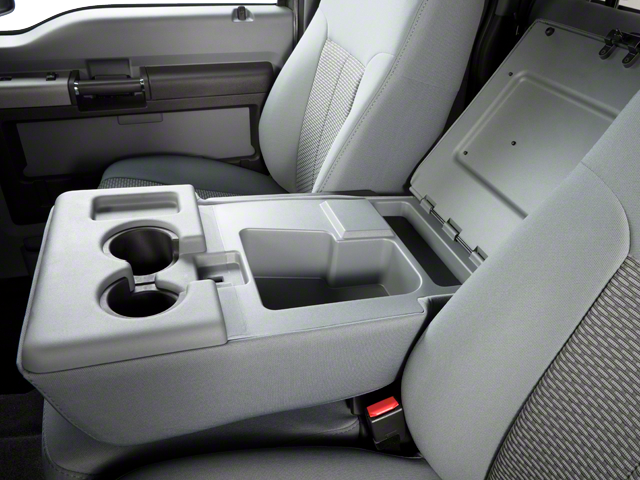

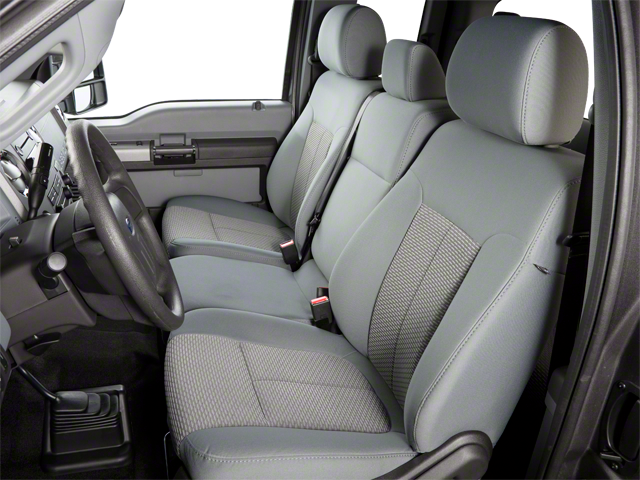

• Cloth 40/20/40 split bench front seat -inc: center armrest, cupholder, storage, center underseat storage w/aux pwr outlet
• Driver manual lumbar support
• 4-way adjustable driver/passenger headrests

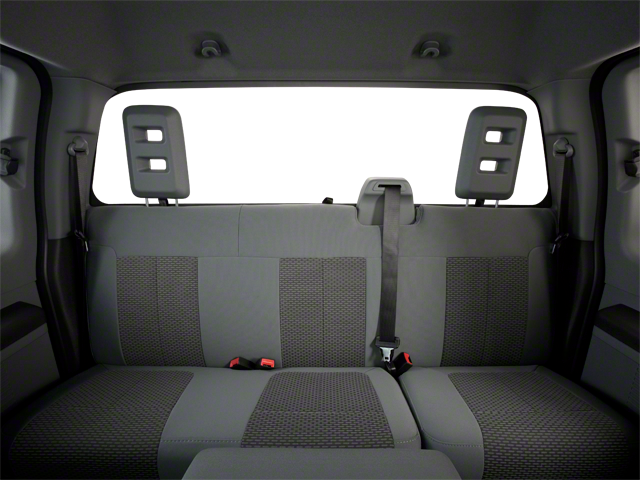

• Cloth 60/40 fold-up rear split bench seat
• Color-keyed carpet full-floor covering
• Front/rear color-keyed carpeted floor mats
• Color-keyed scuff plates

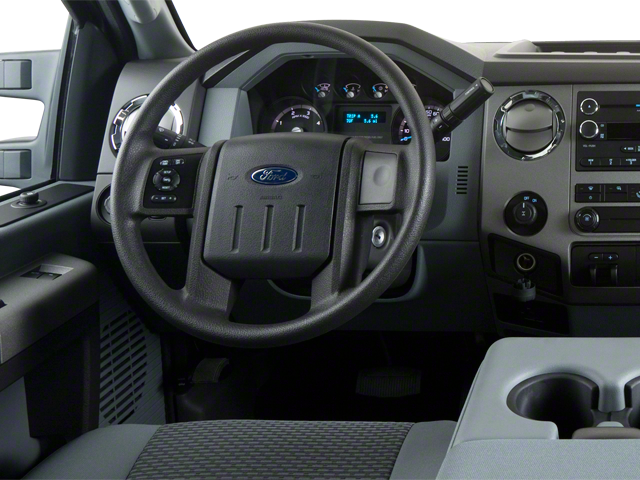

• Tilt/telescoping steering column
• Multifunction switch message center -inc: ice blue lighting, 3-button message control on steering wheel, outside temp display
• Oil minder system
• Pwr windows w/driver one-touch-up/down & backlit switches
• Accessory delay
• Pwr door locks w/backlit switches
• Remote keyless entry & perimeter anti-theft alarm
• SecuriLock anti-theft ignition
• Cruise control -inc: steering wheel mounted controls
• 3-blink lane change signal
• (4) air registers w/positive shut-off
• Map pockets w/integrated "closed containers only" cupholders
• (2) aux pwr outlets in instrument panel
• Dash-top tray

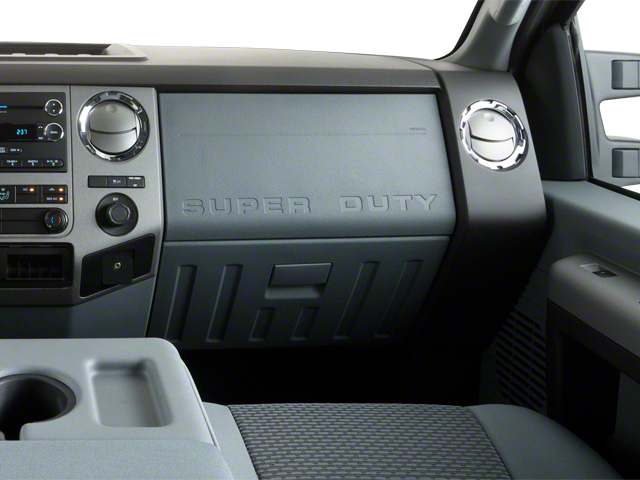

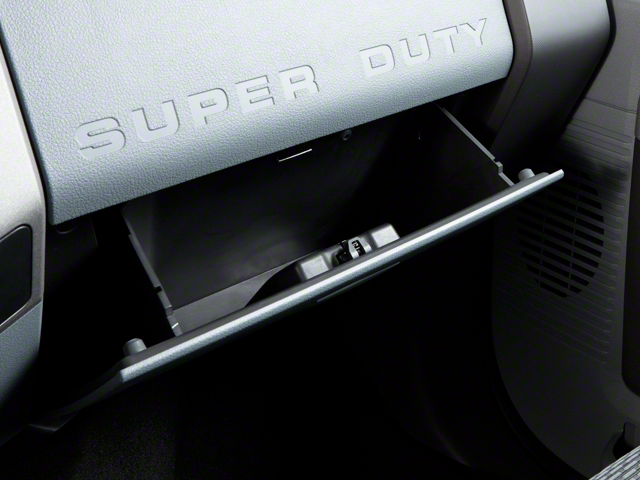

• Glove box
• Instrument panel mounted storage

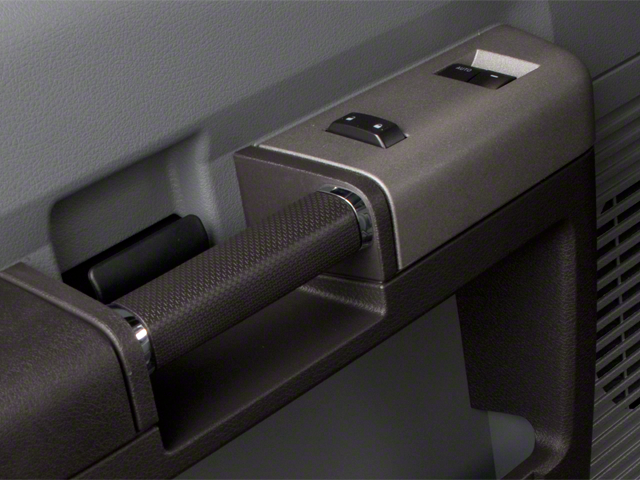

• Color-keyed door trim panel -inc: color-keyed soft armrest, pwr switch bezel molded upper applique, upper & lower map pockets, grab handle & reflector
• Overhead console -inc: storage bins for garage door opener & sunglasses
• Color-keyed cloth headliner
• Front passenger-side roof ride handle
• Driver & front passenger grab handles
• Dual color-keyed vinyl sunvisors-inc: covered mirrors
• Front door operated dome lamp w/time delay off & IP switch
• Front map lamps
• Dual color-keyed coat hooks

• Pwr 4-wheel disc anti-lock braking system (ABS)
• Hill start assist control
• Trailer sway control
• Safety Canopy system
• Driver & front passenger airbags w/passenger-side deactivation switch
• Driver & front passenger side airbag/curtain
• SOS post crash alert system
• Color-keyed safety belts w/front seat outboard height adjustable D-rings
• Front center seat integrated restraints (SIR)
• BeltMinder seatbelt-not-buckled chime & flashing warning light
• Child seat tethers on all rear passenger seats
• MyKey system -inc: top speed limiter, audio volume limiter, early low fuel warning, programmable sound chimes, BeltMinder w/audio mute

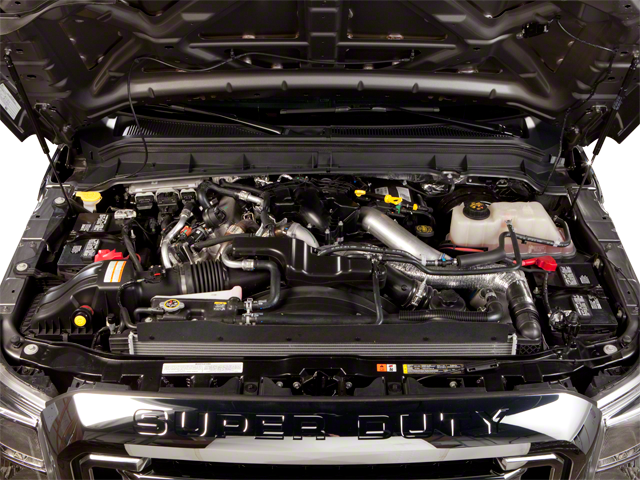

6.7L 32-VALVE PWR STROKE V8 TURBO DIESEL ENGINE

• 750 CCA 78-AH dual batteries
• intelligent oil life minder

• GVWR: 13,300 lb Payload Package
• 17" Forged Polished Aluminum Wheels
• FX4 Off-Road Package
• Camper Package
• Transfer Case & Fuel Tank Skid Plates
• Engine Block Heater
• Extra Heavy Duty 200-Amp Alternator
• 4-Wheel Disc Brakes
• Dual rear wheels
• Front beverage holders
• Variably intermittent wipers
• Traction control
• Tilt steering wheel
• Telescoping steering wheel
• Split folding rear seat
• Rear step bumper
• Rear anti-roll bar
• Power steering
• Passenger vanity mirror
• Passenger cancellable airbag
• Overhead console
• Overhead airbag
• Outside temperature display
• Front reading lights
• Front anti-roll bar
• Dual front side impact airbags
• Dual front impact airbags
• Brake assist
• ABS brakes
• Tachometer
• Air Conditioning

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (Primary): 650
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 200
• Maximum Alternator Capacity (amps): 157
• Maximum Alternator Watts: - TBD -
• Maximum Alternator Watts: 2100
• Cooling System
• Total Cooling System Capacity (qts): 38.9
• Total Cooling System Capacity (qts): 21.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Front (lbs): 5200
• Gross Axle Wt Rating - Rear (lbs): 9000
• Curb Weight - Front (lbs): 4586
• Curb Weight - Front (lbs): 3985
• Curb Weight - Rear (lbs): 3369
• Curb Weight - Rear (lbs): 3237
• Gross Vehicle Weight Rating Cap (lbs): 13300
• Gross Combined Wt Rating (lbs): 30000
• Gross Combined Wt Rating (lbs): 19500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 15000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 12100
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 2250
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1815
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 21700
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 12000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 5425
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3000
• Suspension
• Suspension Type - Front: Coil
• Suspension Type - Rear: 2-Stage Leaf
• Spring Capacity - Front (lbs): 5600
• Spring Capacity - Front (lbs): 5200
• Spring Capacity - Rear (lbs): 9000
• Axle Type - Front: Dana Super 60 Monobeam
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 6000
• Axle Capacity - Rear (lbs): 9500
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 0.94
• Stabilizer Bar Diameter - Rear (in): 0.87
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.7 x 0.6
• Rear Brake Rotor Diam x Thickness (in): 13.4 x 0.3
• Tires
• Front Tire Order Code: TBK
• Rear Tire Order Code: TBK
• Spare Tire Order Code: TBK
• Front Tire Size: LT245/75R17E
• Rear Tire Size: LT245/75R17E
• Spare Tire Size: LT245/75R17E
• Front Tire Capacity (lbs): 3195
• Rear Tire Capacity (lbs): 3195
• Spare Tire Capacity (lbs): 3195
• Revolutions/Mile @ 45 mph - Front: 660
• Revolutions/Mile @ 45 mph - Rear: 660
• Revolutions/Mile @ 45 mph - Spare: 660
• Wheels
• Front Wheel Size (in): 17 x 6.5
• Rear Wheel Size (in): 17 x 6.5
• Spare Wheel Size (in): 17 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 20.4
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 52.3
• Turning Diameter - Wall to Wall (ft): 54.2
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26.0
• Fuel Tank Capacity, Approx (gal): 35.0
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 158.0
• Length, Overall w/o rear bumper (in): 248.6
• Width, Max w/o mirrors (in): 96.0
• Height, Overall (in): 79.7
• Overhang, Front (in): 38.1
• Overhang, Rear w/o bumper (in): 52.4
• Front Bumper to Back of Cab (in): 139.8
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 35.7
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.0
• Ground Clearance, Rear (in): 8.0
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 98.0
• Cargo Box Width @ Top, Rear (in): 60.6
• Cargo Box Width @ Floor (in): 69.3
• Cargo Box Width @ Wheelhousings (in): 50.9
• Cargo Box (Area) Height (in): 20.0
• Tailgate Width (in): 60.6
• Cargo Volume (ft³): 77.3
• Ext'd Cab Cargo Volume (ft³): 39.5
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 40.7
• Front Leg Room (in): 41.1
• Front Shoulder Room (in): 68.0
• Front Hip Room (in): 67.6
• Second Head Room (in): 38.1
• Second Leg Room (in): 31.6
• Second Shoulder Room (in): 68.1
• Second Hip Room (in): 67.3
• Summary
• Vehicle Name: Ford Super Duty F-350 DRW
• Body Style: Extended Cab Pickup
• Body Code: 158" WB
